Crush tester

  •   Novilog
  •   Made in Europe

Device for performing the following tests on paper or cardboard: CMT-RCT-CCT-ECT-FCT-PAT.

  Download the leaflet
  • 040101
  • ISO 3035
  • ISO 3037
  • TAPPI
  • T808
  • T809
  • T811
  • T818
  • T821
  • T825
  • T839
  • FEFCO Nº 6-8 & 11
  • AFNOR 23035

    • Product description

    Device for performing paper or cardboard.



    Test description:

    The holder is placed with the test specimen centered in the lower plate of the compression tester. When the test begins, the inferior plate will displace upward and a load will begin to be applied to the specimen. This force is captured by means of a load cell 5 KN coupled to the upper plate. When the system detects the sample breaking, the inferior plate returns to the initial position at the maximum speed.

    Technical specifications

    General data

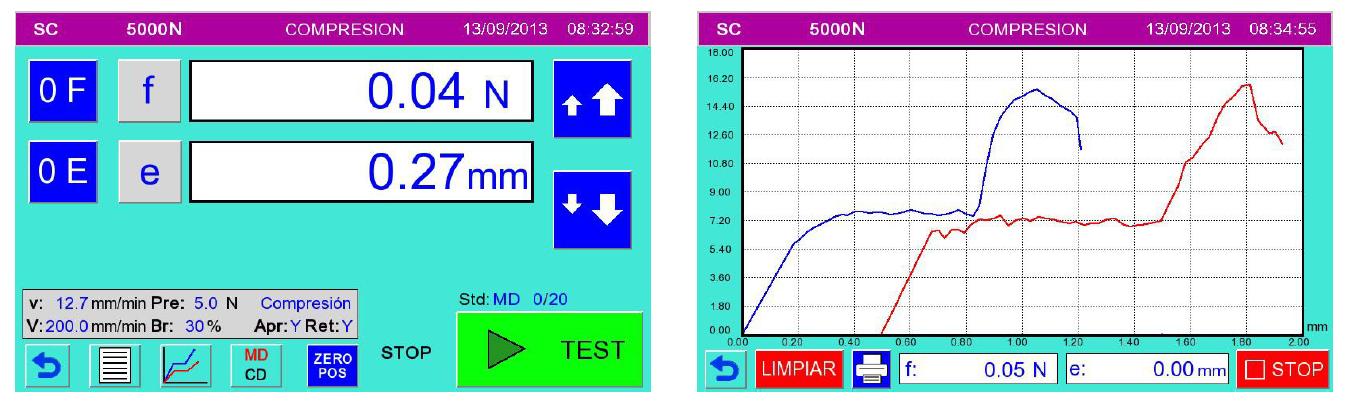

    • Touch screen.
    • Robust construction with one central spindle.
    • Permanently mounted pressure platens.
    • Testing force up to 5000 N.
    • Testing speed up to 200 mm/min adjustable.
    • Automatic plate returning after test.
    Log in
    230 V / 50 Hz
    Weight and dimensions Packaging
    120 Kg
    450x520x900 mm (WxLxH)
    Product weight and dimensions
    65 Kg
    380 x 460 x 750 mm (WxLxH)
    Scope of delivery
    • Crush Tester
    • Electrical connection cable
    • User manual
    Interested in this product ?
    Do not hesitate to ask for a quote
